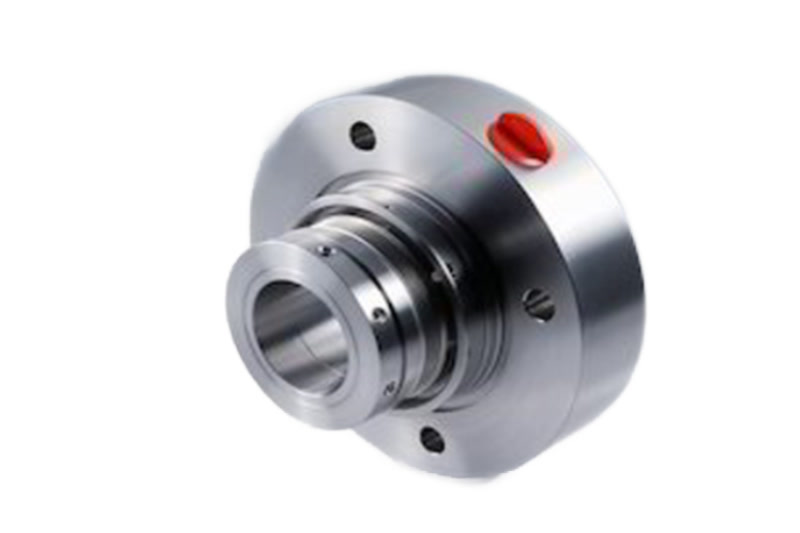

CARTRIDGE UNBALANCED SINGLE MECHANICAL SEALS are single acting cartridge design unbalanced Mechanical Seals suitable for Slurries, Sludge’s, Syrup, Water, Oil & Chemicals used in moderate pressure pumps. These seals are independent of direction of rotation, pre assembled cartridge unit easy to install with different PCD’s pumps due to slots provided on gland plate and these seals can be offered in balanced and unbalanced configuration. As all parts are Interchangeable, by changing only the dynamic ring and the secondary seal, this principle is ideal for stock rationalization, this seals are comfortable to use in wide range of application as below:
| Seal Faces (Dynamic & Stationary Ring) | Carbon, Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, Materials suitable for fluid applications |
| Secondary Seal | Viton, Silicon, Aflas, Kalrez, PTFE, GFT |
| Hardware & Spring | SS 316, SS 304, Carpenter-42, Alloy-20, Hastelloy – C |
| Shaft Diameter | 16 mm to 66 mm (0.65” to 2.60”) |
| Pressure | Up to 20 bar (kg/cm²) |
| Temperature | -45°C to 180°C |
| Shaft Speed | Up to 3000 RPM |
