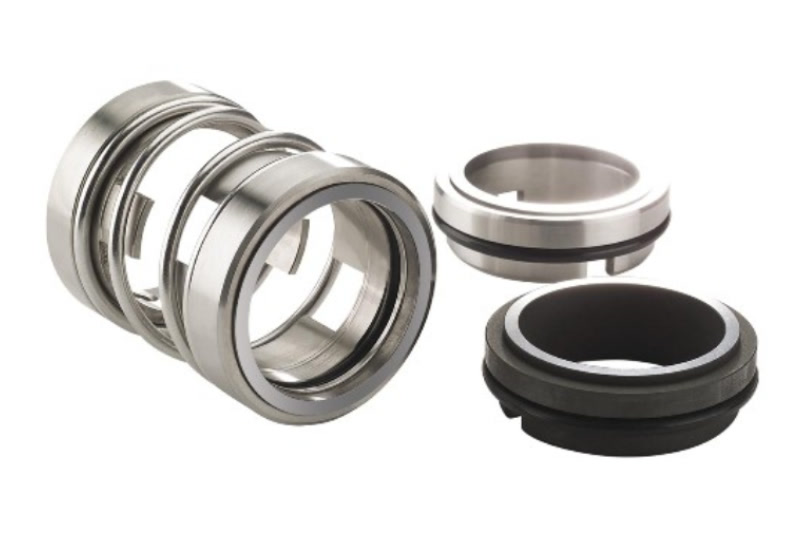

single spring unbalanced/balanced Mechanical Seals suitable for wide service applications. It is independent of direction of rotation, these seals driven by drive ring or drive collar, rotary is driven by the motion transmitted by shaft to spring, seals are having easy fitment & pushed with drive ring or drive collar support. As all parts are Interchangeable, one can convert this series by changing only the dynamic ring and the secondary seal, this principle is ideal for stock rationalization, this seals are comfortable to use in wide range of application as below:
| Seal Faces | Carbon, Ceramic (99.5%), Silicon Carbide, Tungsten Carbide & materials suitable for fluid |
| Secondary Seal |
LPS-021-U: Viton, EPDM, Silicon, EPR, Kalrez, Aflas
LPS-025-U: GFT, PTFE, FEP |
| Hardware & Spring | SS 316, SS 304, Hastelloy-C, Monel, Alloy-20 |
| Shaft Diameter | 19 mm to 100 mm (0.75” to 4.0”) |
| Pressure | Up to 10 bar (kg/cm²) |
| Temperature | -45°C to 200°C |
| Shaft Speed | Up to 3000 RPM |
